MUNI – UNIVERSAL MILL
Flexible. Multi-mode. Trial-ready.
A versatile milling platform for multi-material facilities, R&D and new product trials
The MillNest Universal Mill MUNI is a multi-mode milling platform for facilities processing multiple materials, validating new products or running pilot-scale operations. Impact, shear and attrition modes in one compact unit.
50 – 5,000
kg/hr Capacity Range
100 – 2000
Micron Typical Output
Multi-Mode
Impact / Shear / Attrition
SS / MS MOC
Option Available
ATEX / CE Certification
Option Available
The MUNI Universal Mill operates with interchangeable rotor and stator configurations — allowing impact, shear and attrition grinding modes in a single machine. This versatility makes it the natural choice for facilities processing a range of materials or validating new products before committing to a dedicated mill.
Low heat generation makes MUNI particularly suitable for heat-sensitive spice materials where volatile oil retention and colour preservation are priorities. The compact footprint and quick-release access simplify changeover between products.
- Multiple grinding mechanisms — impact, shear and attrition modes
- Compact footprint suited to pilot plants and multi-material facilities
- Fast product changeover with quick-release rotor access
- Low heat generation — suitable for heat-sensitive materials
- Good for application trials before scale-up commitment
- Adjustable particle size via rotor/stator configuration selection

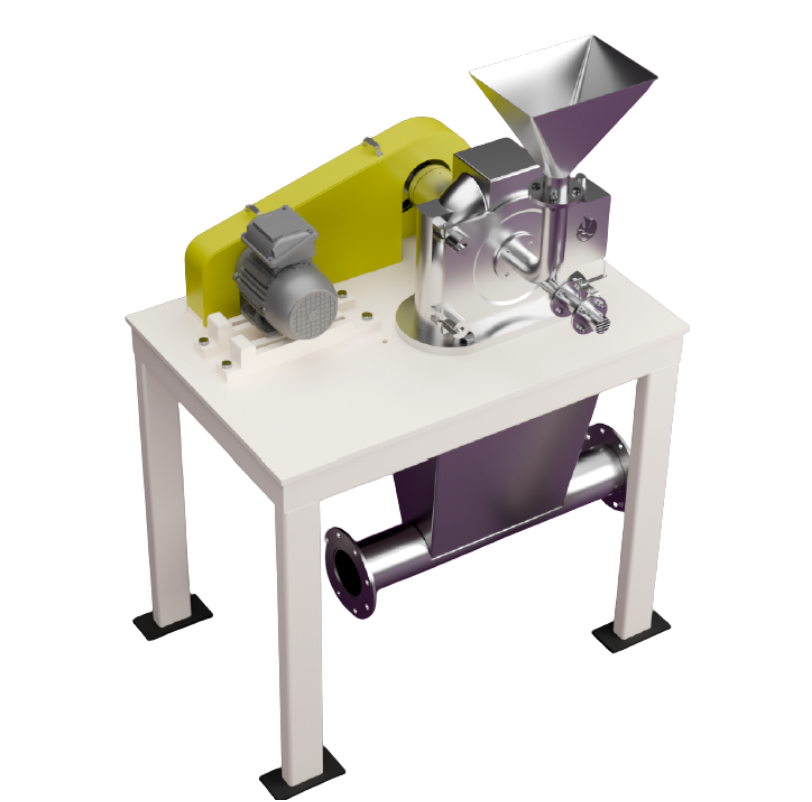

Use your mouse to move or zoom in the model
- Particle size range: 500 microns to 3mm
- Quick-change hammer system
- Multiple feed system options
- Variable speed control
- Stainless steel construction available
- Energy-efficient motor optimization
- Precision-balanced rotor assemblies
- Low vibration operation
- Dust-tight pneumatic discharge
- CE & ATEX compliance options
| Model | Capacity (kg/hr) | Motor Power (kW) | Dimensions L×W×H (m) | Feed Options |
|---|---|---|---|---|
| MUNI-500-7.5 | 100 – 500 | 2.2 – 5.5 | 0.7*0.4*0.9 | Gravity/Pneumatic/Screw |
| MUNI-1000-25 | 500 – 1000 | 7.5 – 18.5 | 1.2*0.66*1 | Gravity/Pneumatic/Screw |
| MUNI-1500-50 | 1000 – 1500 | 22 – 37 | 1.8*0.9*1.4 | Gravity/Pneumatic/Screw |
| MUNI-2000-100 | 1500 – 2000 | 45 – 75 | 2.75*1.2*2 | Gravity/Pneumatic/Screw |
MUNI is the right choice when flexibility matters more than maximum single-material throughput — for facilities handling multiple materials, running product trials or operating at pilot scale before production investment.
- New product development trials across spice, food and pharma materials
- Multi-material facilities requiring fast changeover between products
- Pilot-scale production before committing to a dedicated mill
- Heat-sensitive spices where volatile oil and colour retention is critical
- Specialty food ingredients and nutraceuticals requiring gentle grinding
- Pharmaceutical development batches and excipient milling trials
Universal Mill Datasheet
Full technical specifications, dimensions and ordering information.
Universal Mill Catalogue
Full technical specifications, dimensions and ordering information.
The MUNI processes a wide variety of dry materials, delivering flexible particle size reduction across food, pharmaceutical, nutraceutical and chemical applications.
Turmeric
Coriander
Black Pepper
Dried Herbs
Dehydrated Vegetables
Protein Powders
Pharmaceutical Excipients
View All Materials
These conditions indicate the MUNI Universal Mill is the right starting point. Submit your material for a full review before final selection.
- You process multiple different materials in one facility
- You need to trial a new product before investing in a dedicated mill
- Material heat sensitivity rules out high-speed impact milling
- Fast changeover between products is a production priority
Not sure if MUNI is right for your material?
Share your material details and our process experts will guide you to the right machine and process route.
Get expert guidance for your material, capacity and process requirement before committing to a machine.
