WEIGHING & BATCHING SOLUTIONS

Getting the dose right — consistently, every batch — is what separates a well-run production line from one that generates rework and waste. Weighing and batching systems for dry powder processing need to handle variable ingredient densities, recipe complexity, trace-level components and full batch traceability without adding bottlenecks to the line.

Materials We Process

Engineered for your ingredients

Weighing and batching requirements change significantly depending on the ingredient — its flow characteristics, bulk density, particle size and whether it’s a major component or a trace-level addition measured in grams per batch.

How It Works

The batching process stage by stage

Each step is designed to deliver the right quantity of the right ingredient at the right time — with documentation at every point and no manual intervention in the critical dosing stages.

STEP 1

Recipe Selection

Operator selects product & batch size

STEP 2

Ingredient Staging

Materials positioned at dosing points

STEP 3

Major Component Dosing

Bulk ingredients weighed to spec

STEP 4

Minor & Trace Dosing

Low-level additions — precision scale

STEP 5

Batch Verification

All weights confirmed before release

STEP 6

Transfer to Blender

Conveyed to blending stage

STEP 7

Batch Record

Full documentation logged & stored

Common Challenges

What this solution helps solve

Weighing and batching problems tend to be invisible until they cause a complaint or a recall. These are the failures that show up repeatedly across food, spice, pharma and chemical production lines.

Dosing Inaccuracy on Free-Flowing Powders

Fast-flowing spice and food powders are difficult to dose accurately by volume. Minor overshoot during gravity filling throws a recipe off-spec without any indication to the operator. Load-cell-based weighing with cut-off control is the only reliable answer for high-throughput lines.

Trace-Level Ingredients Getting Lost in Manual Handling

Micronutrients, flavour enhancers and active pharmaceutical ingredients dosed in grams per batch require dedicated precision scales and controlled addition — not a ladle from a bag. Manual trace addition is the most common source of recipe deviation on multi-ingredient lines.

No Traceability When Something Goes Wrong

Without batch records, a quality complaint becomes an investigation that can consume a week. FSSAI, BRC and GMP audits all require documented lot-level traceability. Paper-based batch records introduce transcription errors — electronic batch recording at the weighing stage eliminates this.

Recipe Changeover Mistakes in Multi-SKU Production

Running 20 or 30 masala recipes on the same line creates real opportunity for operators to pull the wrong ingredient or use the previous recipe quantities. Recipe management systems that lock the batch sequence and prompt for each addition reduce changeover errors significantly.

SYSTEM CONFIGURATIONS

Weighing & batching system types

The right configuration depends on production volume, ingredient count, required accuracy and whether the line runs a single product or multiple recipes. Most facilities need more than one approach across different ingredient tiers.

Operator-Guided Batching Station

Guided weighing with error prevention

Operator-guided system where a display prompts for each ingredient in sequence, shows target weight, confirms when within tolerance and prevents moving to the next ingredient until the current one is verified. Significantly reduces recipe errors on multi-SKU lines without the capital of full automation. Suitable for small to medium production volumes where operator involvement is acceptable and recipe discipline is the primary need.

Loss-in-Weight Dosing System

Accurate continuous ingredient metering

The feeder and its hopper sit on load cells — as material is discharged, the system measures the rate of weight loss and adjusts feeder speed to maintain the target feed rate in real time. Handles free-flowing and slightly cohesive powders with high accuracy over extended production runs. Particularly suited to continuous blending lines where ingredients feed simultaneously rather than in batch sequence, and where flow rate consistency directly impacts blend uniformity.

Automated Weigh Hopper System

Sequential automated weighing into accumulation hopper

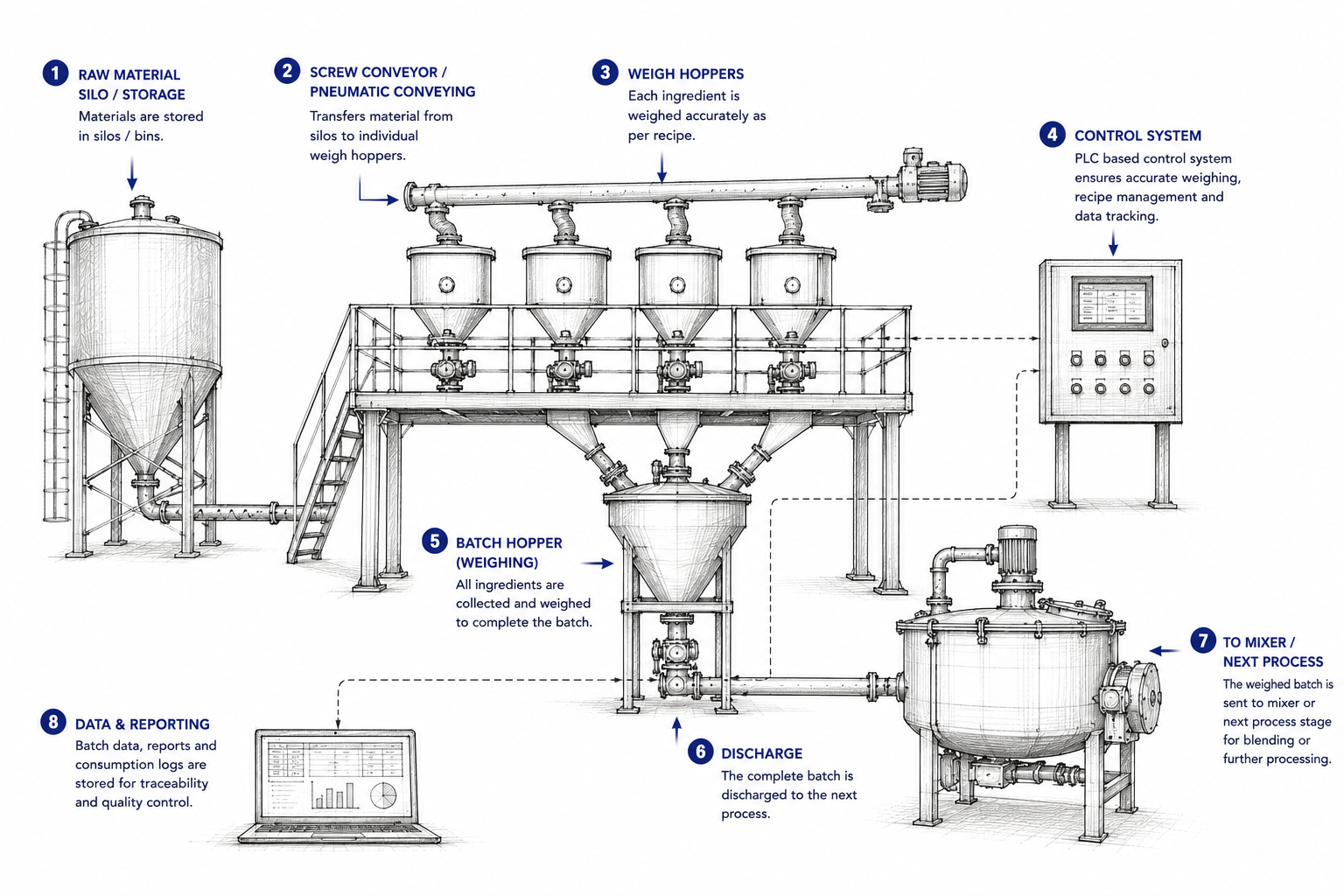

Each ingredient is dosed sequentially into a weigh hopper on load cells — the system opens and closes feed valves automatically to hit target weight with coarse and fine feed phases. When all ingredients are verified, the complete batch discharges to the blender. Suitable for high-throughput multi-ingredient batch lines where full automation is required, batch cycle time is a priority and human intervention in the dosing sequence needs to be eliminated for allergen or GMP compliance.

Precision Micro-Dosing Station

Gram-level accuracy for trace additions

Standard batch weighing systems are not appropriate for ingredients dosed in grams per hundred-kilogram batch — the resolution of a bulk weigh hopper is simply too coarse. Dedicated micro-dosing stations with high-resolution load cells, slow-feed augers and dust-contained addition points handle active ingredients, micronutrients, flavour compounds and pharmaceutical actives at trace levels. Integrated with the batch management system so micro-dose completion is verified before the batch proceeds.

Technology Fit

Choosing the right batching configuration

Most production lines need more than one weighing approach — major ingredients automated, trace-level ingredients on a dedicated precision station. The right design comes from understanding the full recipe structure.

Production Scale

Volume & Batch Frequency

High-throughput continuous lines suit loss-in-weight systems. Batch-mode production with multiple recipes per shift suits guided or automated weigh hopper configurations.

Recipe Complexity

Ingredient Count & Range

Recipes with a wide range of ingredient quantities — from kilograms to grams — typically need two systems: a weigh hopper for bulk components and a micro-dosing station for trace additions.

Compliance Requirement

FSSAI, BRC, GMP

FSSAI and BRC require documented batch records. Pharma GMP mandates electronic batch records with operator verification at each step. System choice needs to meet the compliance standard from day one.

Allergen Control

Multi-Product Changeover

Facilities running allergen-containing recipes need recipe lock-out, changeover verification and batch records that confirm correct ingredients were used — not corrected after the fact.

Quick Reference: Solution Summary

Engineering review required before final selection

Parameter	Details
System Types	Manual guided, loss-in-weight, automated weigh hopper, micro-dosing station
Dosing Accuracy	±0.1% on major components — ±1g resolution on micro-dosing stations
Recipe Management	Multi-SKU recipe library, operator-guided sequence, batch lock-out
Batch Traceability	Electronic batch records — ingredient, lot number, weight, operator, time
Compliance	FSSAI, BRC, GMP — documentation structure matched to standard
Integration	Connected to blending, conveying and packing stages in the complete line
Suitable Industries	Food, spice, pharma, nutraceutical, chemical, fertilizer
Next Step	Submit recipe structure and compliance requirement for system design review
